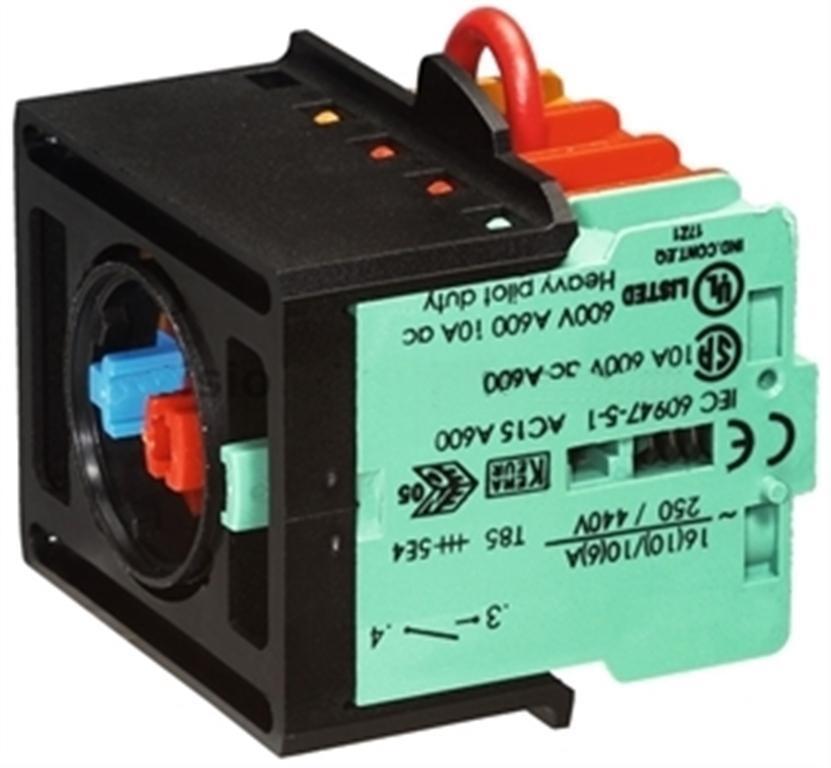

SICK ELEMENTO CONMUTACION PARA SETA EMERGENCIA

"Sick ES21-CH2101 E-S (6036144) DescriptionYour benefits Either as surface-mounted version with housing or as built-in version (O 22 mm) Built-in version for machine control panels with self-monitoring contacts between the pushbutton and switching element Surface-mounted version for direct mounting on different machines and systems Rotational or key unlocking Variants with LED ring lighting Optionally, with protective collar to prevent inadvertent actuation Screw connection in all variants Greater safety in built-in devices due to self-monitoring contacts Greater availability due to variants with a protective collar User-friendly status indicator by colored mark or LED ring lighting around the pushbutton Successful down to the last detail: award-winning and appealing design  Technical data Type of command unit: Emergency stop pushbutton Mounting version: panel mount version Protection class: II Ambient operating temperature from ... to: -30 °C ... 85 °C B10d parameter: 4.75* 1E 06 switching cycles Switching principle: slow action switching element Number of positive action N/C contacts: 2 Number of N/O contacts: 1 Electrical life (depending on the load): 1* 1E 06 switching cycles Usage category in compliance with IEC/EN 60947-5-1: AC-15/DC-13 Rated operating current (voltage): 3 A (250 V AC) 2 A (24 V DC) Rated current (voltage) according to EN 61058-1: 16 A (10 A) 250 V AC 10 A (6 A) 440 V AC Contact module for panel mount version: Illumination connection: - Weight: 85 g Mechanical life (relay contacts): 1* 1E 06 switching cycles "
